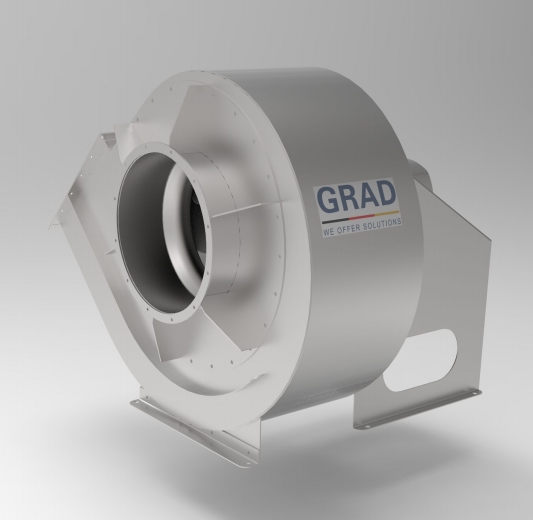

The DET industrial blower ranges in sizes from 500 to 2000mm and includes a Scroll type housing and a backward inclined wheel.
Various volumes, pressures and class’ are available. They are made of mild steel construction and are capable of up to 150,000m3/h.
Radial fans with direct drive are used in an exceptionally wide range of applications. In particular, they are deployed in industrial applications where abrasive media or explosive gas volumes need to be transported. Examples include:
Industrial processes
Laboratories
Industrial workshops
Boiler rooms
Storerooms for hazardous goods
At petrol stations
The fan brings the air flow together and channels it in its concentrated state in one direction. This is known as a centrifugal function principle. The air is first taken in parallel to the drive axis. The rotation of the radial impeller then diverts the air flow by 90° and it is blown back out radially.
AMCA C construction
Solid backward inclined blades handle dusty and mildly corrosive airstreams
Rugged, continuously welded heavy steelplate construction.
Four-way gusset maintains structural stability regardless of motor location
Hyperbolic wheel cone optimizes smooth and stable airflow
AMCA B Construction
Inlet screen
Shaft guard
Drain
Punched flanged inlet
Shaft cooler guard
Bolt-on inlet box
Punched flanged outlet
Shaft seal
Outlet damper
Unitary base
Extended grease fittings
Split housing
Belt guard
Access door
Model size
Shaft
Keyway size
Width, height and depth sizes for various parts of the blower
A/9 Max motor frame size
When it comes to tailor-made products and customer-specific solutions, we use modern design and simulation processes to ensure that the inflow conditions and execution of the solution meet the customer’s requirements.
